DUT: Synthesized 49 Elements, 7λ x 7λ Phased Array using Moving Probe at X-Band.
Results

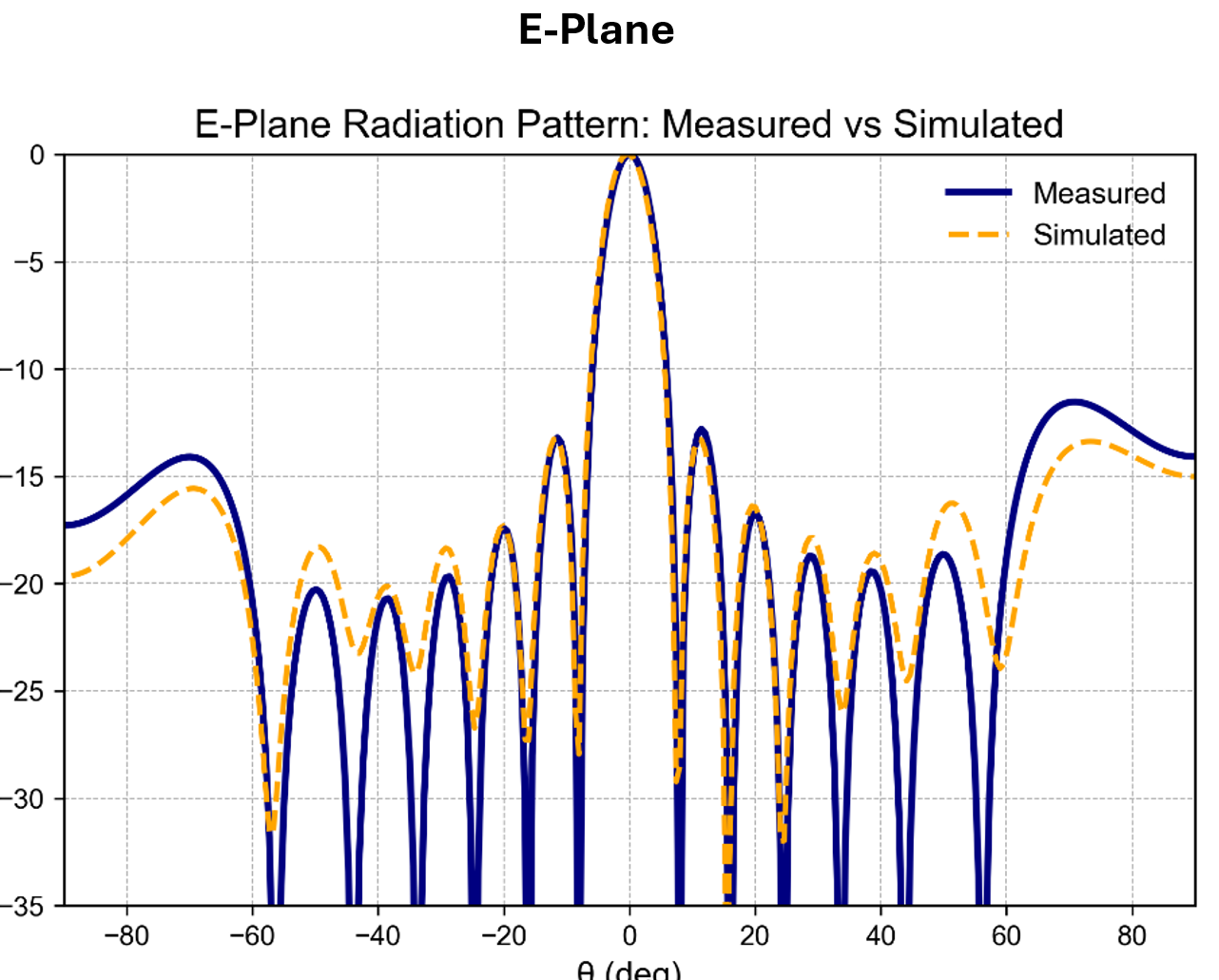

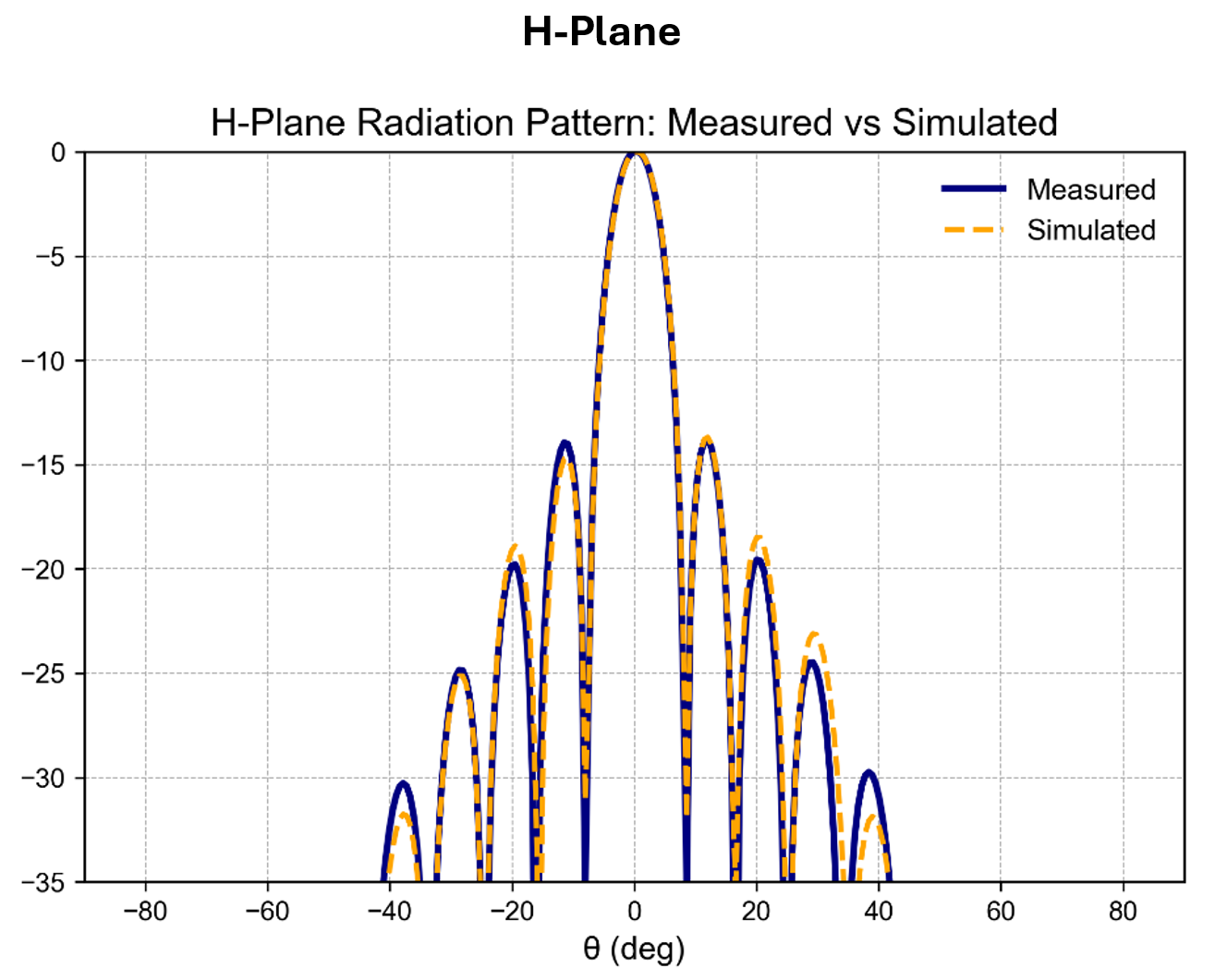

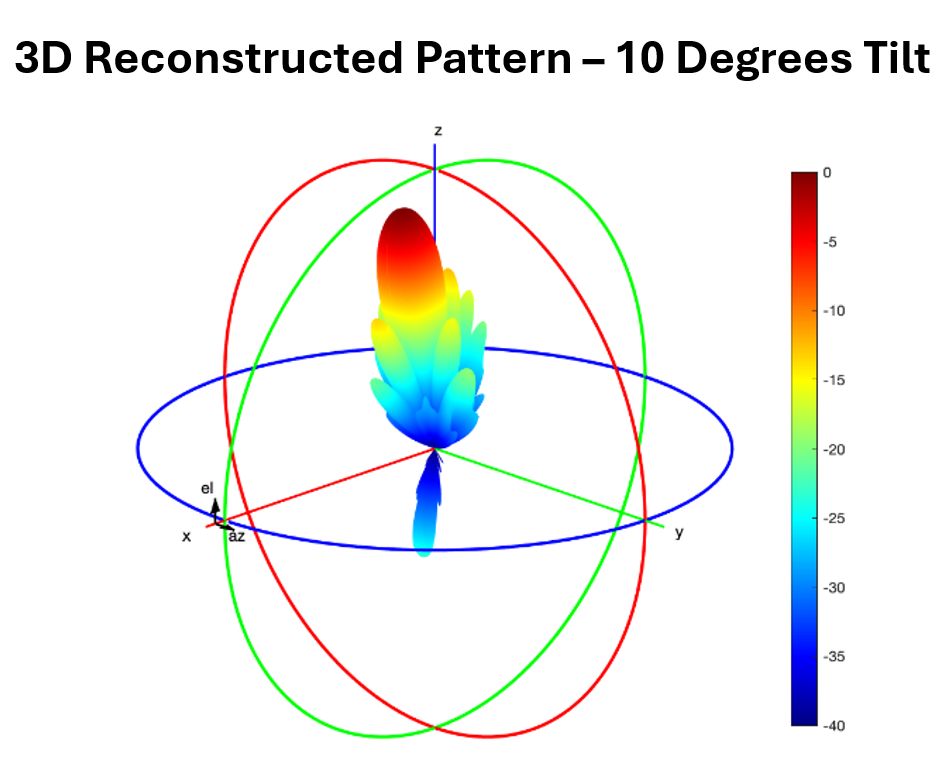

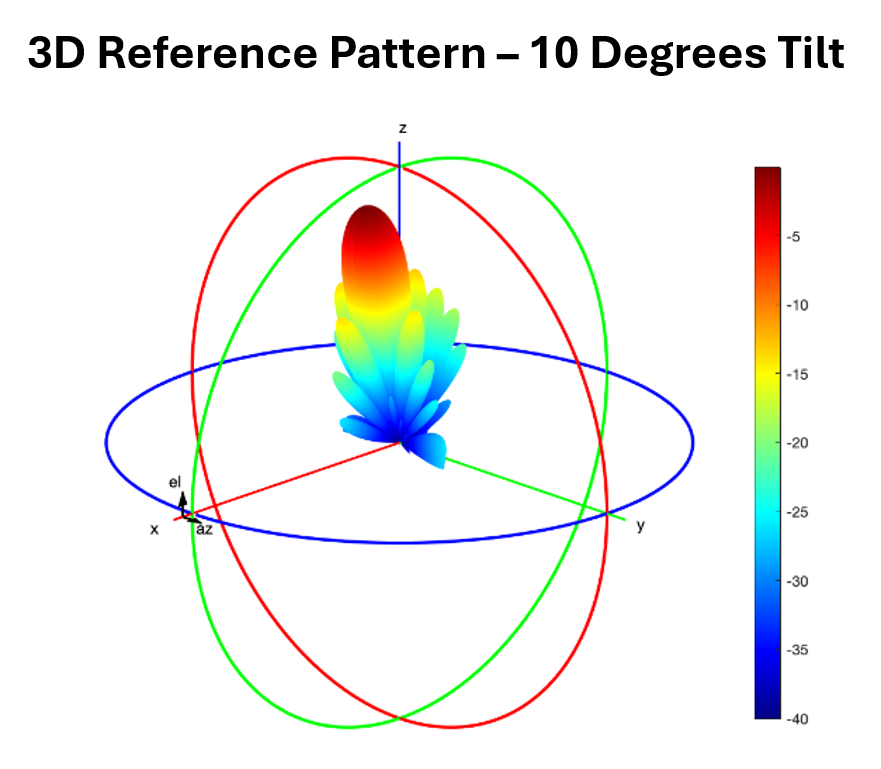

Reference pattern is obtained by multiplying the pattern of single element (simulated) by the mathematical array factor. Reconstructed result is obtained by combining measurement of the single element moved in front of rich scattering media, similar to a Synthetic Aperture Radar Antenna. Great match observed between two cases.
